Stainless Steel Electric Melting Furnace For Surface Bright
Treatment

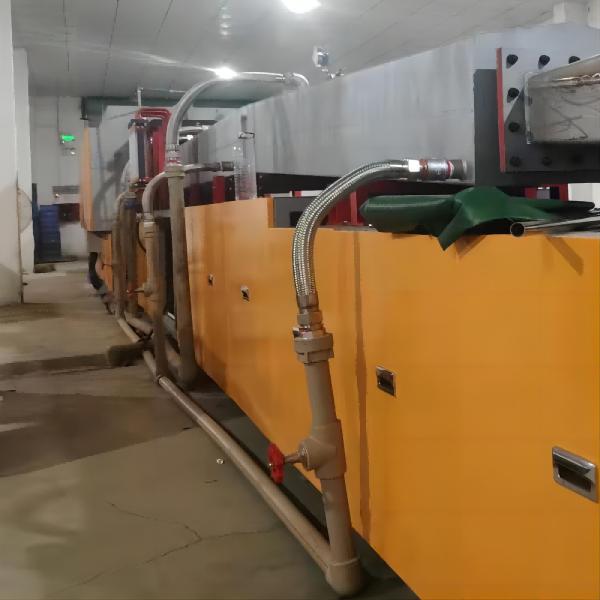

Stainless steel bright annealing furnace equipment is mainly used
for bright annealing of stainless steel parts and various
tableware. The furnace type is an arch bridge type. Its
characteristic is that liquid ammonia undergoes a thermal
decomposition reaction at a certain temperature through the ammonia
furnace. After decomposition, it can be obtained A certain
proportion of hydrogen-nitrogen mixture is used for protection.
After annealing, the surface of the workpiece is uniform and
bright, which completely solves the old process of pickling after
annealing.
1﹑Technical specification
1. Rated power: 125 KW
2. Heating pressure: 5 zones
3. Main body length of heating furnace: 4600mm
4. Rated operating temperature: 1050℃
5. Steel strip width: 350 mm
6. Steel belt running speed: 30-300mm/min (frequency control)
7. Temperature uniformity in the furnace: ±5℃, instrument
temperature control accuracy: ±1℃
8. Effective cross-sectional area of furnace tube: width 330*80mm
9 Dimensions: ~17 meters long
2﹑Patent
With proven engineering knowledge and more than 20 years'
experience we can provide you the right furnace solution.
3﹑Customer Case in China
The first Aluminum-air battery graphene conductive film production
line in china
The first All-solid-state battery pilot production line in china
The first Mobile phone fast charging graphene heat dissipation film
carbonization production line
The first ITO target powder roller furnace continuous production
line in china
The first Hydrogen fuel cell industrial production line in china
The first alumina continuous fiber production line in china
4﹑Foreign Customer
5﹑Package and shipment
We will well pack the goods based on the kinds of furnace and
customer's requirement.
