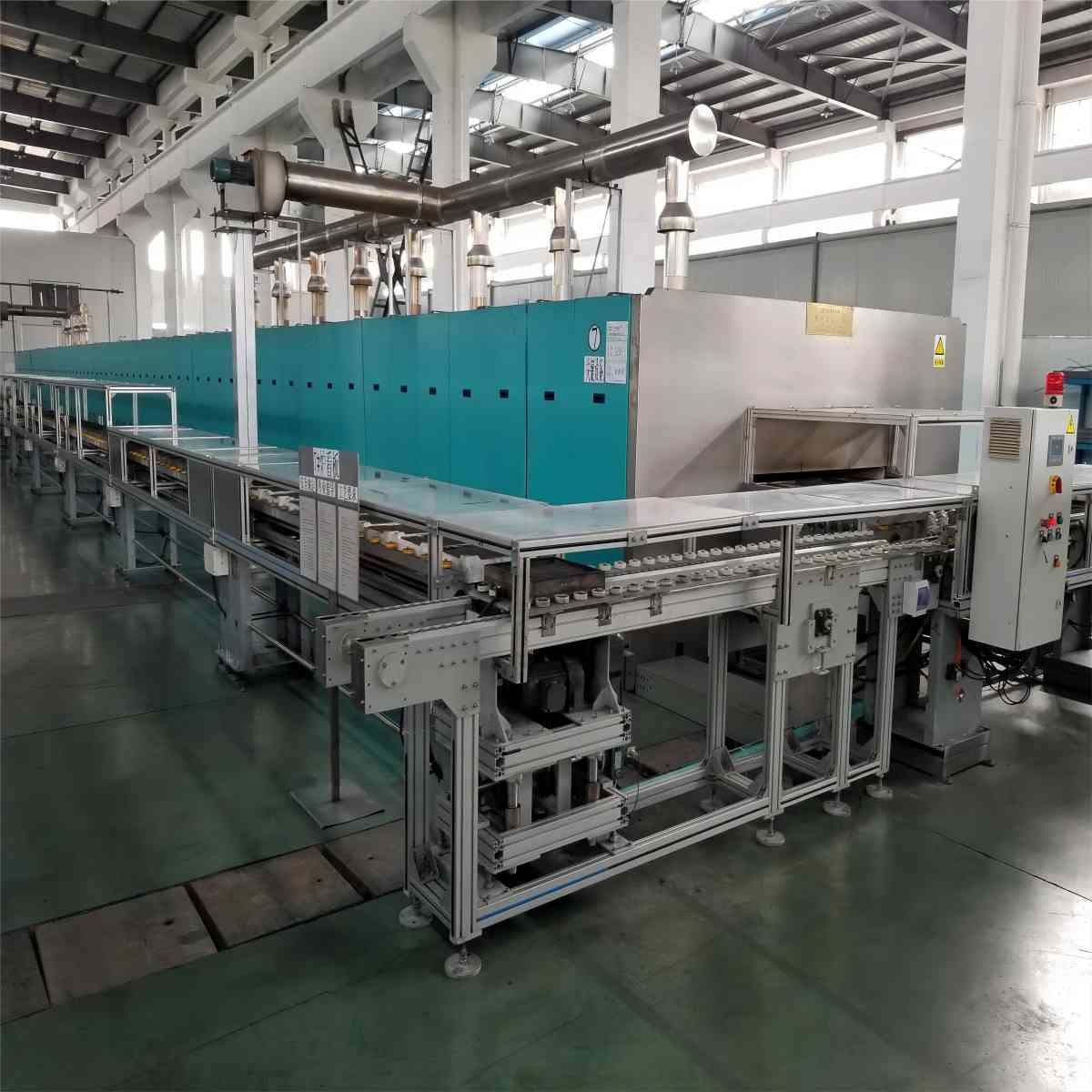

Continuous production roller hearth furnace for glass ceramic
products annealing industrial furnace
The roller hearth furnace is a type of industrial furnace used for
heat treating material in continuous and index-continuous
production processes.
The system provides firing conditions that meet customer needs
through atmosphere controls for air,N2, O2, N2 + H2,and other
gases, as well as precision temperature controls for each of the
preheating, firing, and cooling zones.
The system contributes to the production of all solid-state
batteries and cathode and anode materials for lithium-ion
batteries.
Roller hearth furnaces offer advantages in speed, consistency, and
system durability when compared to traditional batch-type furnaces.
Among continuous furnaces, roller hearths are the go-to furnace
type for businesses that heat treat large runs of identical parts.
1﹑Applicable Material
Lithium battery materials, advanced ceramic materials, high-purity
alumina powder, catalysts, magnetic materials, rare earth materials
2﹑Technical Specification
| MAX temperature | 1350℃ |
| Working temperature | 1300℃ |
| Roller material | silicon carbide or alumina ceramics. |
| Chamber size | customized according to customer's actual process, production
capacity and technical requirements |
| Arrangement | 4 columns and 2 layers,4 columns and 1 layers,3columns and 2
layers, etc |
| Heating element | Silicon carbide rod or high temperature resistance wire |
| Heating method | horizontal heating |
3﹑Advantage
1. built with new refractory materials, arched structure on top,
which has a long service life and uniform exhaust.
2.with excellent thermal efficiency, and the uniformity of
temperature field can reach ±5°C.
3.Special intake and exhaust structure design can ensure
unobstructed exhaust during glue removal.
4.equipped with partition beams inside the Chamber, which can
adjust and control the atmosphere and supply in each temperature
zone.
5.Can be completely customized according to the actual process and
requirements of customers.
4﹑Patent
With proven engineering knowledge and more than 20 years'
experience we can provide you the right furnace solution.
5﹑Customer Case in China
The first Mobile phone fast charging graphene heat dissipation film
carbonization production line
The first ITO target powder roller furnace continuous production
line in china
6﹑Foreign Customer
7﹑Package and shipment
We will well pack the goods based on the kinds of furnace and
customer's requirement.
