    900C Atmosphere Box Furnace PID Intelligent Temperature Control Cathode Material Roller Hearth Furnace

    PID Intelligent Temperature Control Cathode Material Atmosphere Box Roller Hearth Furnace

    1﹑Atmosphere Box Furnace

    This furnace uses silicon carbide rods as heating elements, and uses an intelligent temperature control module combined with a touch screen for centralized control. The furnace is made of alumina hollow balls, which have good resistance to rapid cooling and rapid heating, and good corrosion resistance. The sealing connection between the furnace shell and the furnace door adopts a silicon rubber sealing structure, and a water cooling chamber is provided to cool the furnace mouth. The furnace is built with alumina hollow spherical bricks, and silicon carbide rods are arranged above and below the furnace. The atmosphere used in the electric furnace is nitrogen, and a professional multi-channel uniform air intake system is designed to achieve the gas to reach all angles in the furnace effectively and uniformly. A one-way exhaust system is installed on the top of the furnace, the exhaust gas is discharged from the top chimney, and the high temperature valve controls the exhaust volume. There is also an exhaust valve and a drain valve at the bottom of the furnace for washing and drying the furnace. The control system is integrated with the furnace shell, which is located at the lower part of the furnace body for easy operation. This type of furnace is an ideal equipment for heat treatment of products under atmosphere protection. The appearance design of the electric furnace adopts the latest international style, which has many advantages such as simple and generous structure, beautiful appearance and simple operation.

    2﹑Technical specification

    Applicable materialCathode material
    Working temperature900℃
    Rated temperature1000℃
    Sagger330L*330W*100H mm(user-supplied)
    Stacking type2 columns, 2 rows, 2 floors
    Processing capacity30 kg/furnace
    Chamber size950L*950W*260H mm
    Furnace size1900L*2100W*2000H mm
    Furnace materialAlumina hollow ball light brick + 1260 type high-quality ceramic fiber
    Top structurevault structure
    Heating elementSilicon carbide rods covered with corundum tubes
    Temperature control stability±1°C, using 30-segment intelligent temperature control module combined with touch screen control, with PID parameter self-tuning function
    Temperature control points4
    Temperature measuring hole1
    Rate powder56Kw
    Furnace atmosphereair, oxygen, nitrogen
    Furnace door and wiring cavity sealWater cooling + silicone rubber
    Intake systemBottom porous air intake, flow meter control
    Exhaust systemTop 1 way exhaust
    ThermocoupleK type
    RollerSiC Roller
    PowerThree-phase, 380VAC, 50Hz

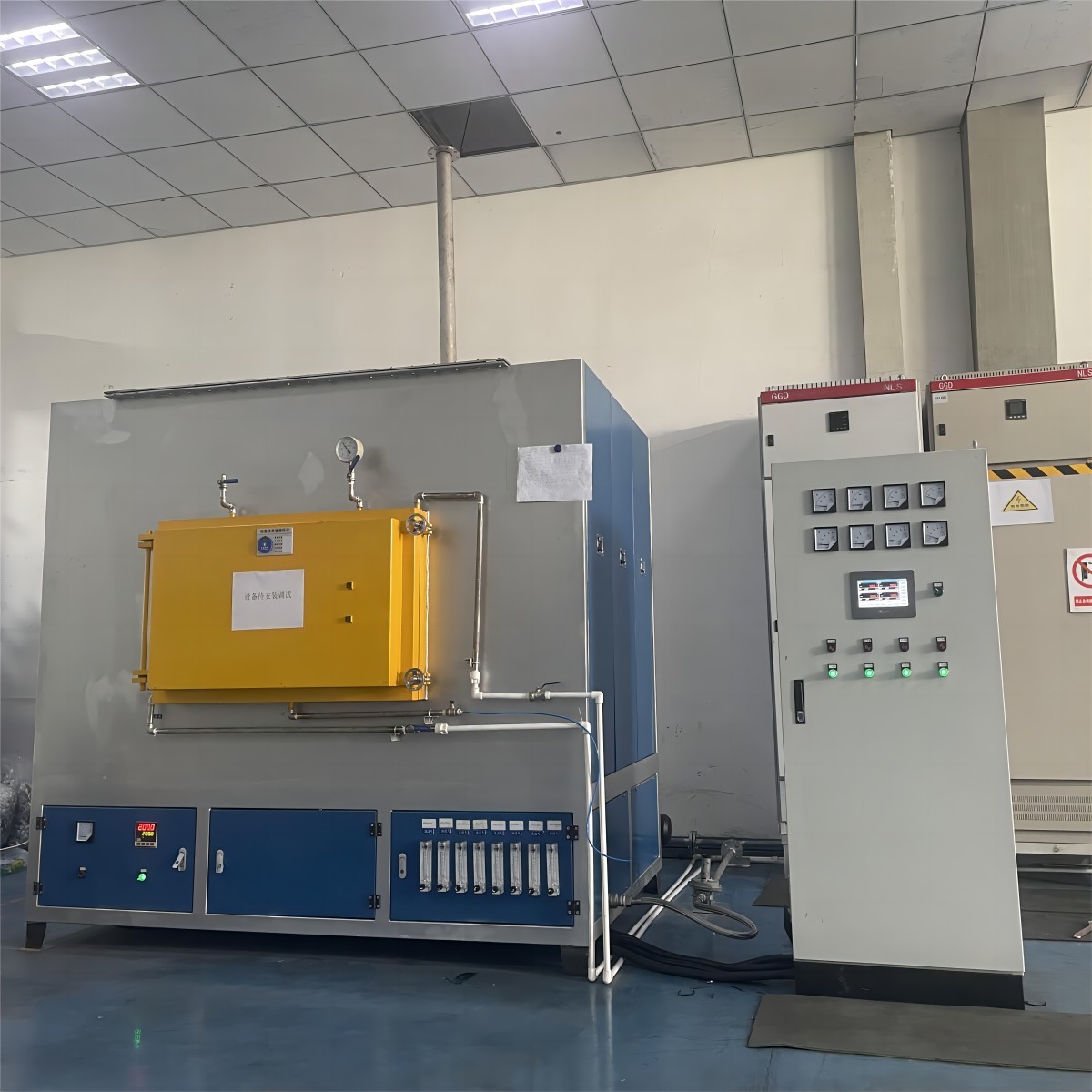

    900C Atmosphere Box Furnace PID Intelligent Temperature Control Cathode Material Roller Hearth Furnace


    3﹑Patent

    With proven engineering knowledge and more than 20 years' experience we can provide you the right furnace solution.

    Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 0


    4﹑Customer Case in China


    The first All-solid-state battery pilot production line in china

    Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 2

    The first Mobile phone fast charging graphene heat dissipation film carbonization production line in china

    Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 3

    The first ITO target powder roller furnace continuous production line in china

    Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 4

    The first Hydrogen fuel cell industrial production line in china

    Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 5


    5﹑Foreign Customer

    Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 7

    6﹑Package and shipment

    We will well pack the goods based on the kinds of furnace and customer's requirement.

    Non-standard industrial continuous gas mesh belt kiln for sintering of ceramic 8
